Competing the engine bay

I have read a good deal on the web about lining the engine bay. I had decided not to line the wheel arches but I still needed to have heat shields. I decided that I would also line the bulkhead with aluminium so I purchased a sheet from the local dealers. I then set about creating a template using some strong paper. Once I was happy with the fit I cut it out of aluminium making a few minor modifications before riveting into position.

Template:

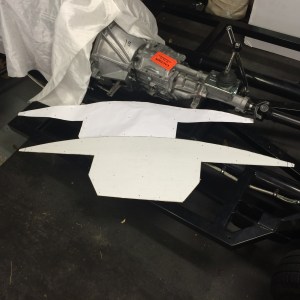

I made a couple after getting the first one wrong!

I made a couple after getting the first one wrong!



First fix:

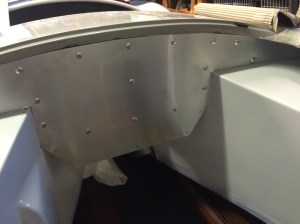

I would need to bend the lower section to fit the lower bulkhead

I would need to bend the lower section to fit the lower bulkhead

Final fix:

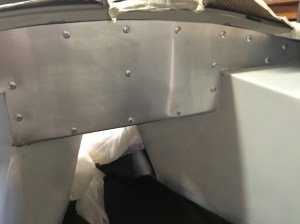

Looking clean and neat!

Looking clean and neat!
